H542A
-
Product Features
UMTS, LTE Band
PCB Soldering Re-flow
Wide Operation Temperature Range -40 ~ 85℃
Compact Package Design for PCB Applications -

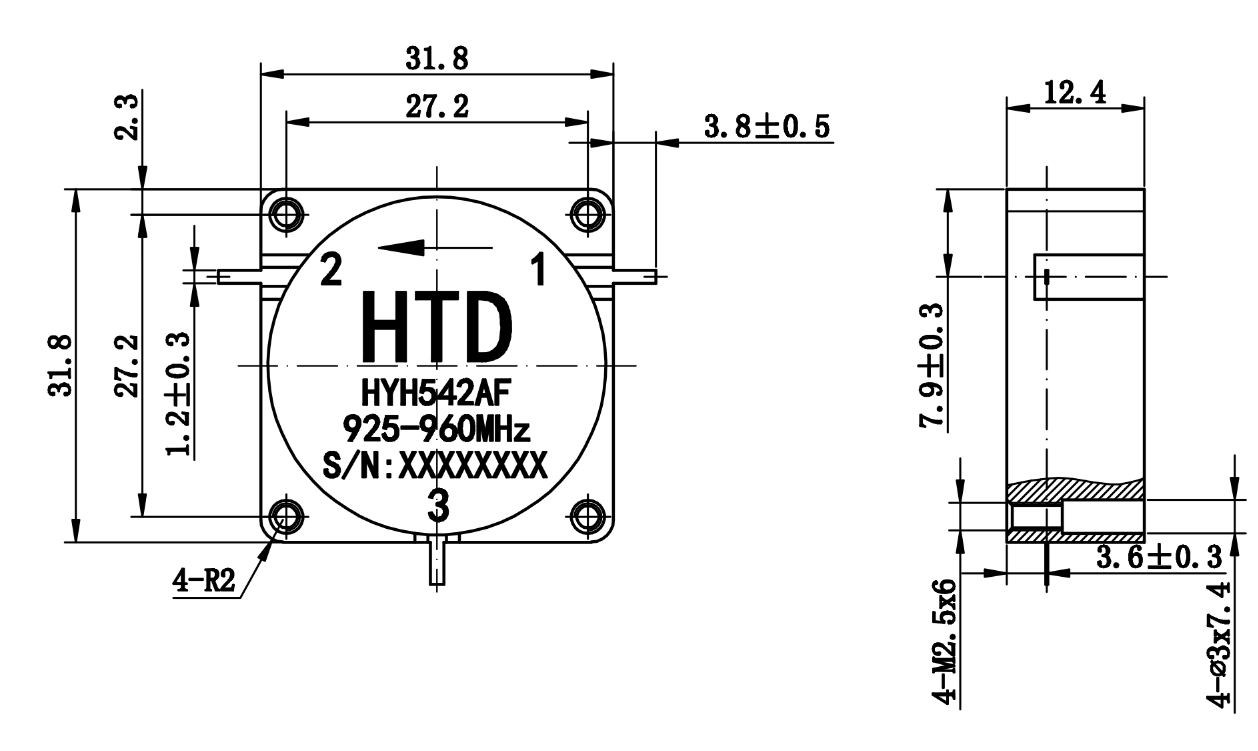

Size Display
-
Specification Parameters
Model
Frequency（GHz）
F1Frequency（GHz）
F2Center Frequency
(GHz)Bandwidth
（GHz）Isolation
（dB）MININS LOSS
（dB）MAXenVSWR
MAXPower
(W)IMD
(@2X43dBm)
(-dBc)MAXH542A [2110-2170]MHz 2.110 2.170 2.140 0.060 23 0.25 1.15 400 -75 H542A [1805-1880]MHz 1.805 1.880 1.838 0.075 25 0.2 1.12 350 -75 H542A [1800-2175]MHz 1.800 2.175 1.9875 0.375 22 0.3 1.17 300 - H542A [1710-1785]MHz 1.710 1.785 1.7475 0.075 23 0.25 1.15 400 -70 H542A [1565-1586]MHz 1.565 1.586 1.5755 0.021 23 0.25 1.15 300 - H542A [1217-1238]MHz 1.217 1.238 1.2275 0.021 23 0.25 1.15 300 - H542A [925-960]MHz 0.925 0.960 0.9425 0.035 25 0.25 1.12 400 -75 H542A [700-960]MHz 0.700 0.960 0.8300 0.260 16 0.5 1.38 300 - H542A [560-680]MHz 0.560 0.680 0.6200 0.080 20 0.15 1.22 100 - H542A [470-510]MHz 0.470 0.510 0.4850 0.040 20 0.15 1.22 100 - H542A [415-425]MHz 0.415 0.425 0.4200 0.010 22 0.35 1.17 100 -
