H535A
-
Product Features
UMTS, LTE Band
PCB Soldering Re-flow
Wide Operation Temperature Range -40~ 85℃
Compact Package Design for PCB Applications -

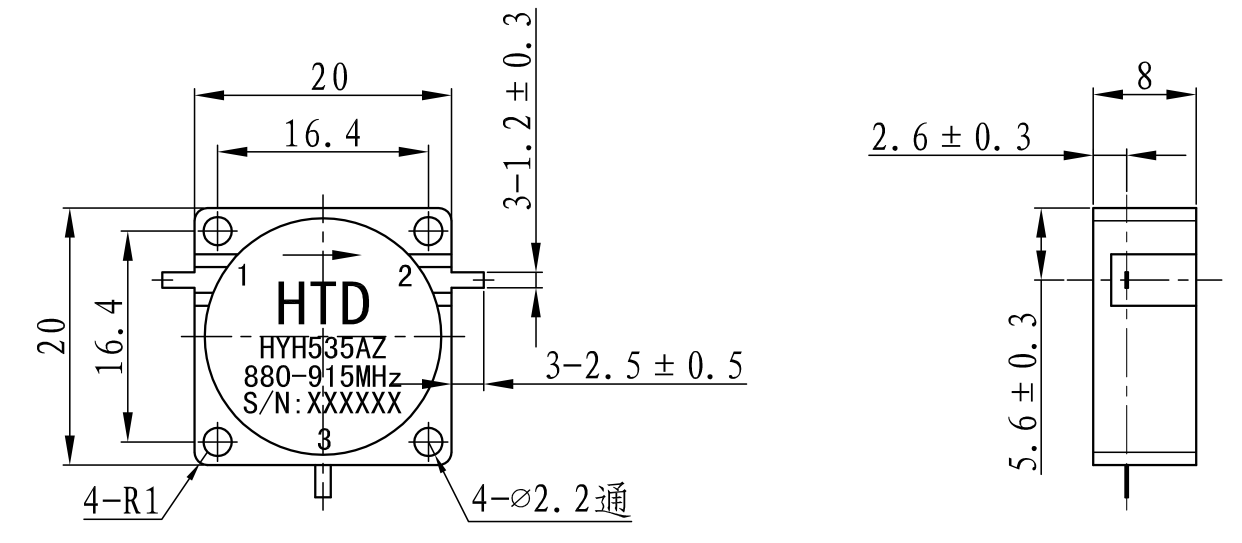

Size Display
-
Specification Parameters
Model
Frequency（GHz）
F1Frequency（GHz）
F2Center Frequency
(GHz)Bandwidth
（GHz）Isolation
（dB）MININS LOSS
（dB）MAXenVSWR
MAXPower
(W)IMD
(@2X43dBm)
(-dBc)MAXH535A [2500-2700]MHz 2.500 2.700 2.600 0.200 22 0.28 1.17 150 - H535A [2400-2500]MHz 2.400 2.500 2.450 0.100 23 0.25 1.2 150 - H535A [2300-2400]MHz 2.300 2.400 2.350 0.100 22 0.3 1.2 150 - H535A [2110-2170]MHz 2.110 2.170 2.140 0.060 23 0.25 1.15 100 - H535A [1880-1920]MHz 1.880 1.920 1.900 0.040 23 0.25 1.15 100 - H535A [1805-1880]MHz 1.805 1.880 1.838 0.075 23 0.25 1.15 150 - H535A [1750-2120]MHz 1.750 2.120 1.925 0.370 20 0.35 1.2 150 - H535A [1400-1610]MHz 1.400 1.610 1.505 0.210 22 0.3 1.2 100 - H535A [1150-1250]MHz 1.150 1.250 1.200 0.200 23 0.25 1.15 100 - H535A [960-980]MHz 0.960 0.980 0.9700 0.020 23 0.3 1.15 100 - H535A [925-960]MHz 0.925 0.960 0.9425 0.350 23 0.3 1.15 100 -74
